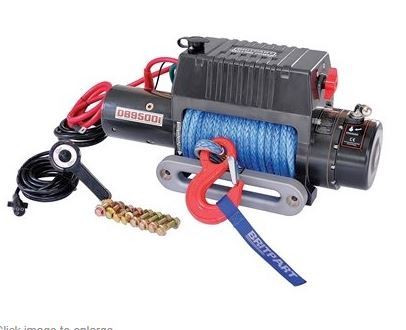

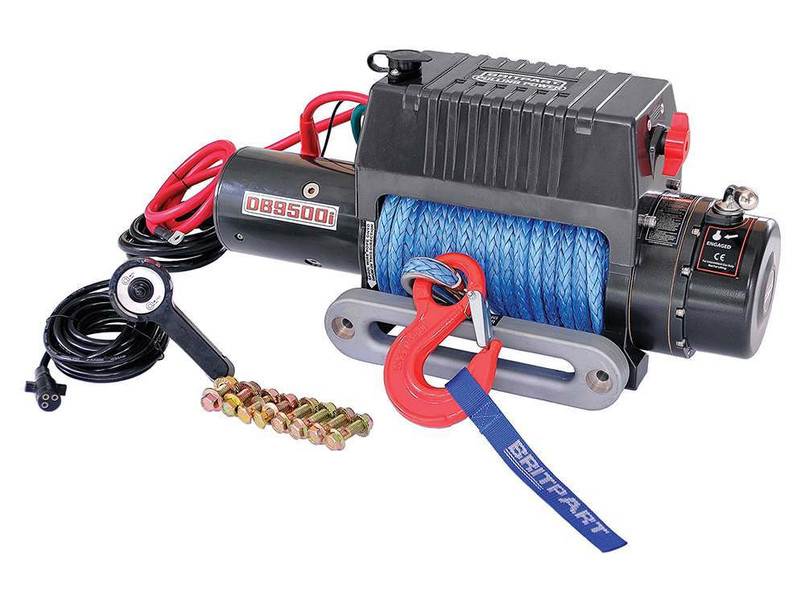

- DB9500iR - 12V 9,500Lbs - Britpart Pulling Power Winch with Dyneema Rope - 3.6Kw Heavy Duty Series Wound Dc Motor
DB9500iR - 12V 9,500Lbs - Britpart Pulling Power Winch with Dyneema Rope - 3.6Kw Heavy Duty Series Wound Dc Motor
Available to Order (Typically Dispatched Within a Few Business Days)
Part Number: DB9500iR.AM
£532.12(Exc VAT)
£638.54(Inc VAT)
Product Information
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
> 3.6Kw (4.8Hp) heavy-duty series wound DC motor
> Weather and dustproof contactor controls for longer life and improved amperage draw
> Planetary gear system for fast line speed
> Automatic load-holding brake
> Free spooling
> Power in and power out
> Low electric current
> Hardened drum
> 24 month warranty
Specification
Rated line pull - single line - 9,500lbs / 4,309kgs
Gear reduction ratio - 212:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.64 x 9" / 67 x 228mm
Cable supplied - 0.43" x 91.9' / 11mm x 28m - Dyneema rope with break force 25,800lbs
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 94.8lbs / 43.0kgs
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mm
A full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
