DB9500I - 12V 9,500Lbs - Britpart Pulling Power Winch - 3.6Kw Heavy Duty Series Wound Dc Motor

Available to Order (Dispatched within one working day)
Part Number
DB9500I.AM
£365.00 (Exc VAT)
Increment Qty Decrement Qty

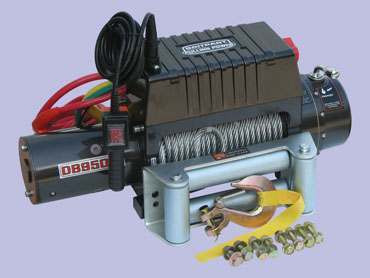

main product photo

9,500lbs

Steel cable

12 volt



Powerful and reliable electric winches.

If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.

These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.

Features
> 3.6Kw (4.8Hp) heavy-duty series wound DC motor
> Weather and dustproof contactor controls for longer life and improved amperage draw
> Planetary gear system for fast line speed
> Automatic load-holding brake
> Free spooling
> Power in and power out
> Low electric current
> Hardened drum
> 24 month warranty

Specification
Rated line pull - single line - 9,500lbs  /  4,309kgs
Gear reduction ratio - 212:1
Motor (series wound) - 4.8Hp  /  3.6Kw
Drum size (D x L) - 2.64 x 9"  /  67 x 228mm
Cable supplied - 0.43" x 91.9'  /  9.53mm x 30.5m - Galvanised aircraft cable with break force 14,4000lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77"  /  548 x 167 x 299mm
Net weight - 94.8lbs  /  43.0kgs
Mounting bolt pattern - 10 x 4.5"  /  254 x 114.3mm

If you have any questions about this product or any of the products in our range, please contact us on sales@lrparts.net or contact our main centre on: 0151 486 0066
