- ARW120SA - ARB 12,000lb 12v Winch - 11mm x 24m Synthetic Rope - 4.3kW Motor and 4 Stage Gearbox

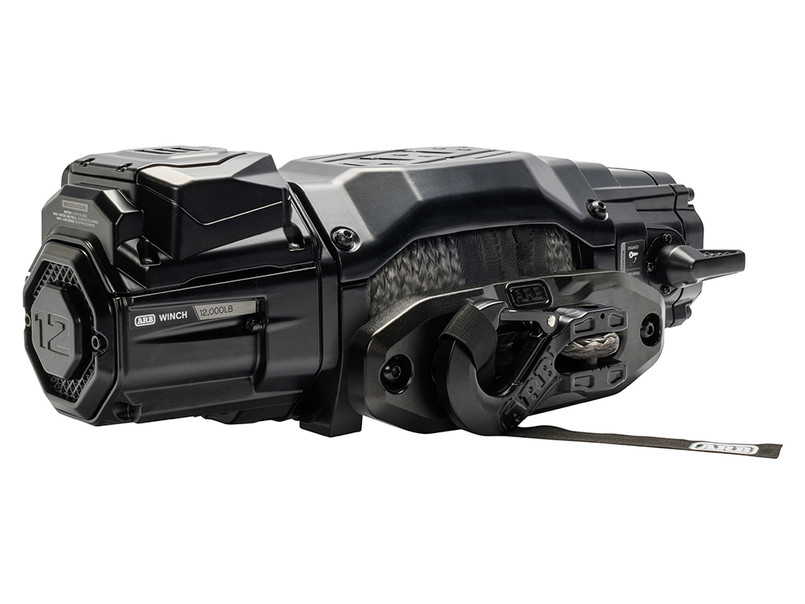

ARW120SA - ARB 12,000lb 12v Winch - 11mm x 24m Synthetic Rope - 4.3kW Motor and 4 Stage Gearbox
Available to Order (Typically Dispatched Within a Few Business Days)
Part Number: ARW120SA.G
£1,002.07(Exc VAT)
£1,202.48(Inc VAT)
Product Information
ARB Winches blend precision engineering with modern vehicle integration. Innovative built-in control unit enhances motor efficiency, while the four-stage gearbox delivers maximum strength and endurance. Designed for today’s bumpers, it eliminates the traditional control box, providing a sleek fit that preserves airflow and sensor functionality while reducing fitting time. Purpose built for balanced strength, functionality, and refined design, it integrates seamlessly and is ready for recovery
Rated Line Pull - 12,000 lbs | 5,443kg
Rope - 11mm x 24m Grey Synthetic
Fitted Weight - 76lb | 34.5kg
Max. Line Speed - 65ft/min | 20m/min
Motor - 4.3kW | 5.7HP

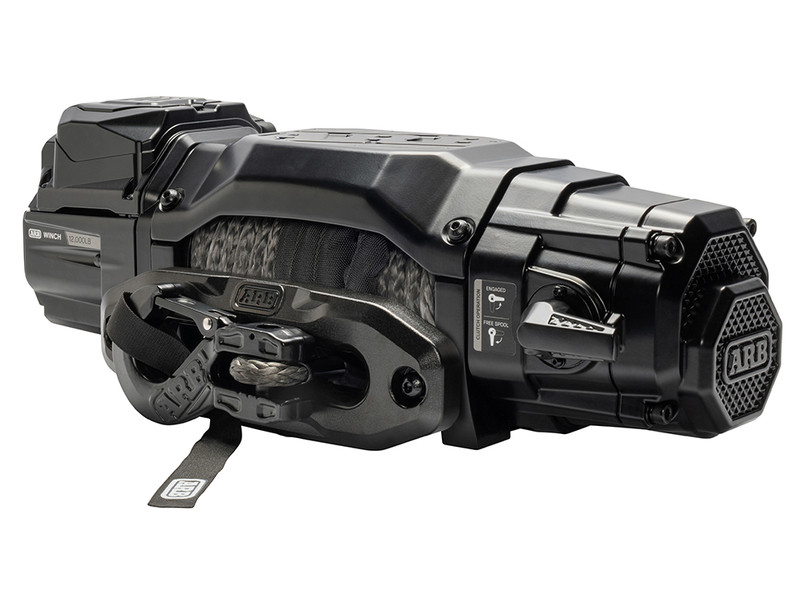

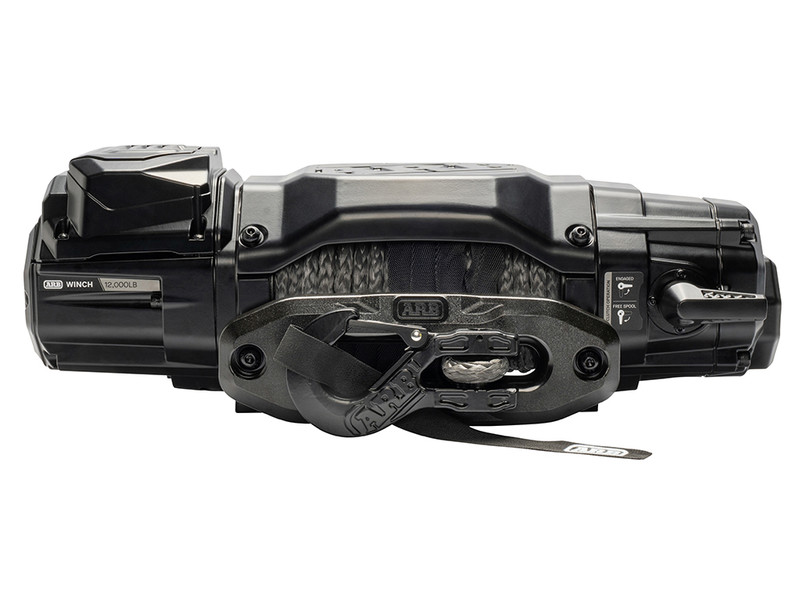

Fairlead - Forged 6061 Aluminium Hawse Fairlead
Electrical Contactor - Albright DC Contactor 500Amp
Brake - Gearbox Mounted 100% Load Holding
Proportional Friction Brake
Gearbox - 171:1 2-Stage Planetary and 2-Stage Spur
Waterproof Ratings - IP68 Winch Motor & Gearbox
Tuned 12V Motor
A purpose-built series-wound motor powers the four-stage gearbox, delivering faster line speeds with lower current draw.
Built-In Motor Control Unit
The advanced design features a direct connection Albright contactor that boosts motor efficiency and eliminates the need for a conventional control box.
Zero Drag Braking System
The gearbox-mounted brake provides 100% load holding and allows powered unspooling under no load without causing any damage to the winch.
4-Stage Gearbox
Hardened steel gearsets are engineered for maximum strength, optimal load distribution, and long-lasting durability.
Main Power Isolation Switch
The ARB Winch features a main power isolation switch included in the box, allowing you to safely cut power to the winch when not in use.
Robust Build Quality
The lightweight aluminium alloy housings are engineered for maximum strength and durability.

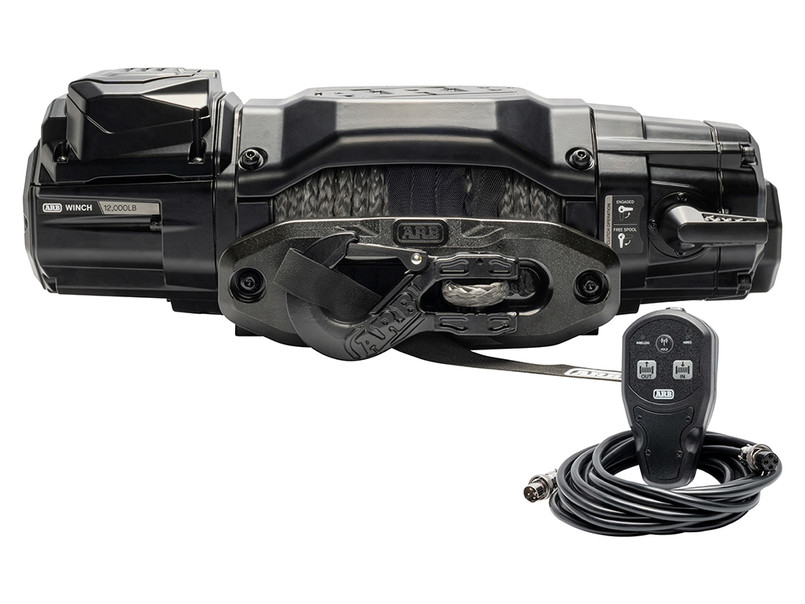

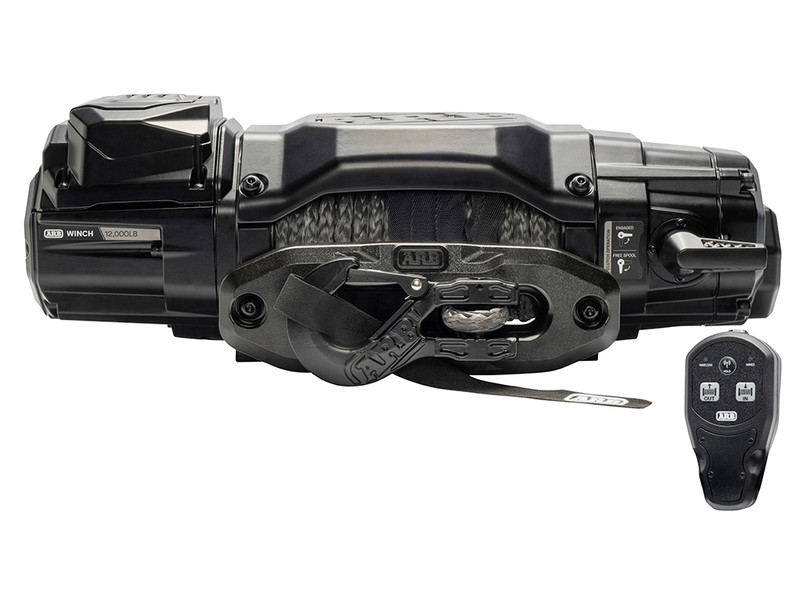

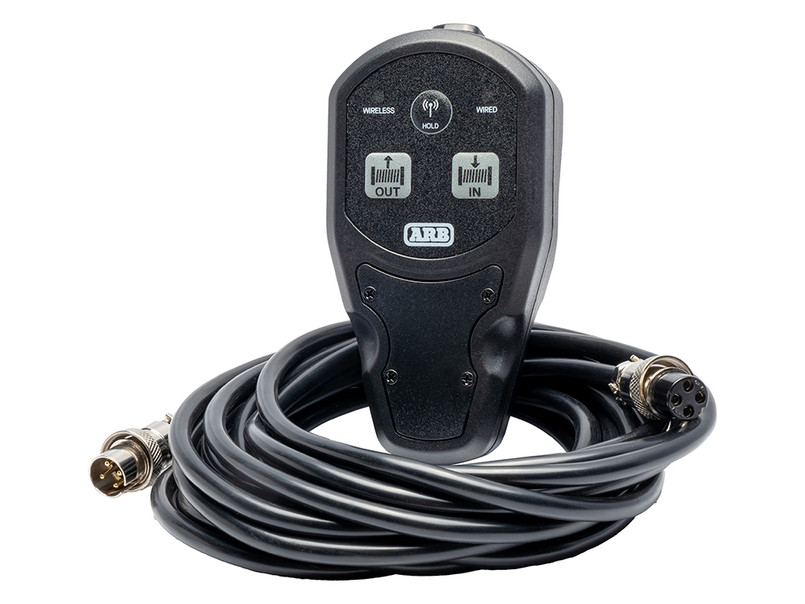

Dual Connection Wireless Remote
Compact hand controller with options for wired connection with a 5m/16ft lead or wireless operation with a 40m/98ft range - included in the box.
Flexible Positions
Rotatable gearbox - 16 positions in 22.5° increments
Rotatable motor - 5 positions in 45° increments
Quick & Easy Fitment
With multiple mounting options, the ARB Winch comes pre-wired and features pre-set gearbox positioning to fit most common vehicles.
