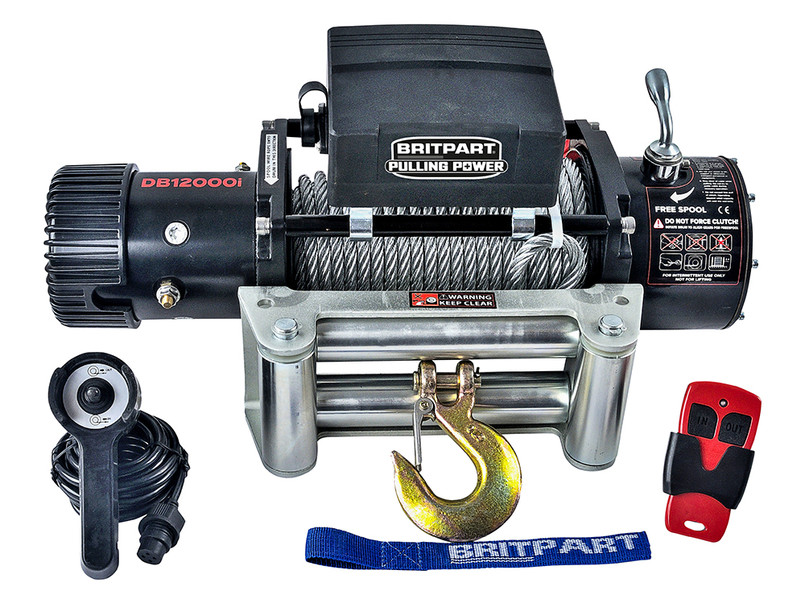

DB12000I - Electric Winch by Britpart 12V - 12,000lbs with Steel Cable

Available to Order (Dispatched within one working day)
Part Number
DB12000I.AM
£483.84 (Exc VAT)
Increment Qty Decrement Qty
main product photo

If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.

These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.

Features
> 3.6Kw (4.8Hp) heavy-duty series wound DC motor
> Weather and dustproof contactor controls for longer life and improved amperage draw
> Planetary gear system for fast line speed
> Automatic load-holding brake
> Free spooling
> Power in and power out
> Low electric current
> Hardened drum
> 24 month warranty

Specification
Rated line pull - single line - 12,000lbs  /  5,443kgs
Gear reduction ratio - 294:1
Motor (series wound) - 4.8Hp  /  3.6Kw
Drum size (D x L) - 2.64 x 9"  /  67 x 228mm
Cable supplied - 3/8" x 100'  /  9.53mm x 30.5m - Galvanised aircraft cable with break force 14,400lbs
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77"  /  548 x 167 x 299mm
Net weight - 94.8lbs  /  43.0kgs
Mounting bolt pattern - 10 x 4.5"  /  254 x 114.3mm

A full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.

Together with the winches you’ll be able to ‘Get to where you want to go!’
