SJB21EUX2 - Intensity 21 Solis Driving Lights by ARB - Comes as a Pair
Available to Order (Typically Dispatched Within a Few Business Days)
Part Number: SJB21EUX2.G
£395.84(Exc VAT)
£475.01(Inc VAT)
Product Information

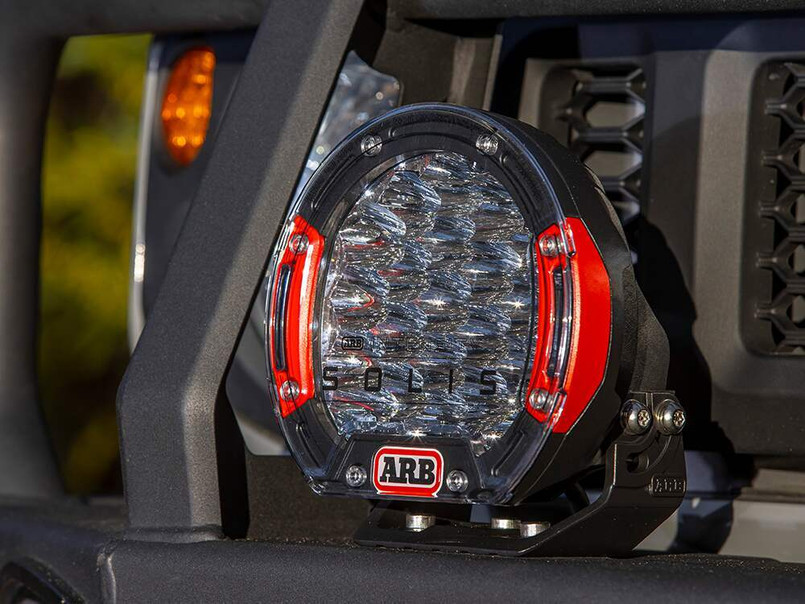

Incorporating in-house engineered and designed optics partnered with OSRAM LED technology and styling updates, the ARB Intensity Solis™ has pushed the limits of driving light technology once again and produced a uniquely designed, feature packed and highly capable driving light in small version and ready for legal fitment & on road use in European countries.
The ARB Intensity Solis™ 21 LED (7’’) Driving Lights are offered in dedicated combination optic tuned for on and off-road use. The lights are E-mark approved (following UNECE R149 regulation).
All ARB Intensity lights are designed to maximise the output in all driving conditions and provide increased life expectancy of the light compared with cheaper lighting options in the market. Many months were spent by the engineers designing and refining an optic that captures the most amount of light, removes flat spots on the optic face and controls the beam into the right area to reduce stray light and maximise the potential of each LED.
A single ARB Intensity Solis™ 21 provides 620m @ 1 Lux on setting #5 in off-road mode. The ARB Intensity Solis™ 21 on setting #3 provides 426m @ 1 lux with up to 40m spread from the vehicle in onroad mode. In dual combo off-road configuration, the distance down the road is a very impressive 877m @ 1 lux on setting #5 and dual combo configuration on setting #3 on-road modes it’s a competitive 603m @ 1 lux.
As well as distance, a warmer light colour helps to reduce eye strain over long driving periods and improves driver comfort while assisting to reduce fatigue.
Features
> 21 Osram LED (15x 4W + 6x 5W)
> 50,000+ Hour LED life span
> Input voltage - 10-30VDC
> Raw lumens - 9133LM
> Colour Temperature - 5700 Kelvin
> 9° full beam width
> Operating Temperature - -40°C to +65°C
> Weight - 2.73kg
> Light dimensions (single) - 192 x 190 x 114mm0mm (7.48”) x 114mm (4.49)” (D)
> Integrated thermal management
> Pressure equalisation breather
> High pressure die-cast aluminium body and mount with variable positions
> Virtually unbreakable polycarbonatelens
> UV stable moulded polycarbonate lens cover
> Durable UV stable powder coat
> High power Amphenol AT06 waterproof connector
> Over Voltage Protection to 30VDC
> Protected against RFI/EMC interference
> Dust and waterproof to IP68
> Tested to MIL810-STDG for vibration
> RoHS compliant > CE compliant
> UNECE R10 compliant
> For Intensity Level #3 (UNECE R149 compliant) - Power draw 36W - Current draw 2.7 Amps @ 13.2V - Effective Lumens 2,700LM - Distance @ 1Lux – 426m (single light)
> For Intensity Level #5 - Power draw 82W - Current draw 6.2 Amps @ 13.2V - Effective Lumens 6,000LM - Distance @ 1Lux – 620m (single light)
> Warranty 3 years – Global warranty
Included
> 2 x Lights & 2 x clear covers
> 2 x Mounting bracket & mounting hardware kit
> UV-resistant interchangable red or black bezels to suit

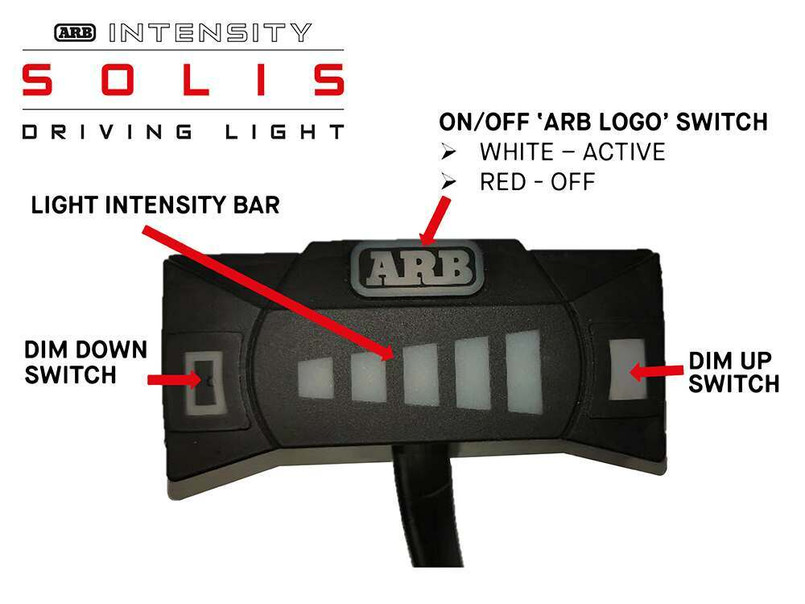

> Wiring loom with dimmer (touchpad) Touchpad Specifications
> Up & Down Button
> 5 pre-set percentage changes - 5, 25 & 50% and 75 & 100% - off-road mode only
> Silicone sleeved for durability and protection
> Multi-coloured indicators – white/red
> Intuitive control and touch – no eyes off the road
> 58mm (L) x 10mm (D) x 25mm
Available in UK only.
