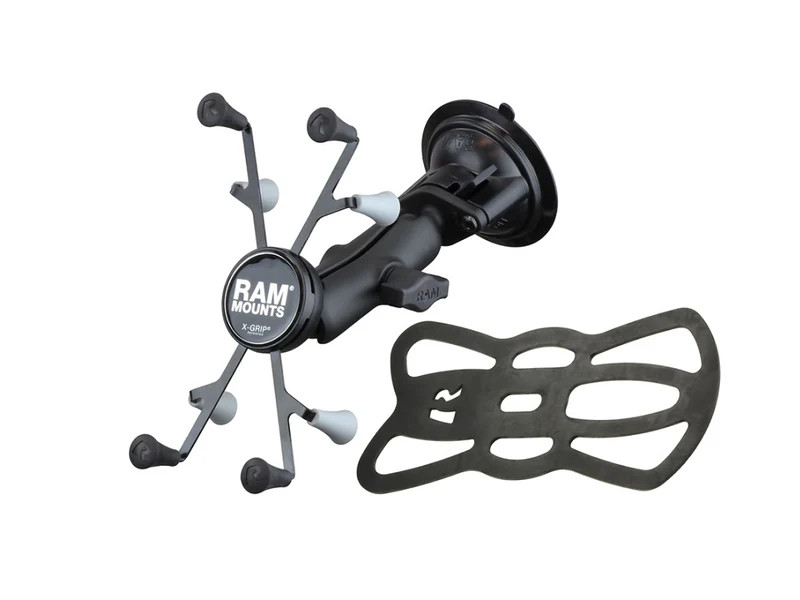

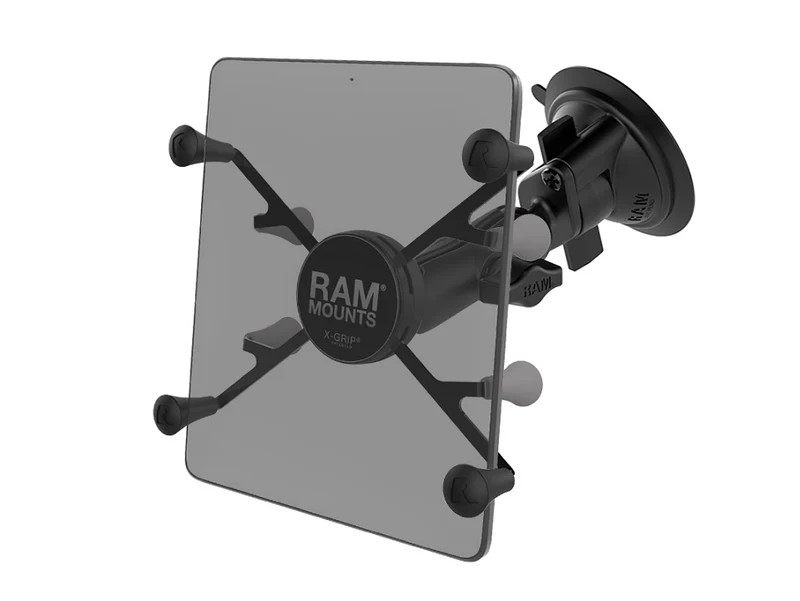

RAM-B-166-UN8 - RAM X-Grip 7-8" Tablet Suction Mount

The RAM window mount, RAM-B-166-UN8U, consists of a 3.3" diameter suction cup twist lock base, standard length double socket arm and universal spring-loaded RAM® X-Grip® cradle for 7"-8" tablets. The suction cup mount, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.

Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this, with a twist of the arm knob, allows you to move the mount to your optimum viewing position. The spring-loaded RAM® X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy-access grip knobs, located on the back of the cradle for quick release of your tablet.

The RAM® X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

You can also combine the RAM X-Grip Tablet Suction Mount with other X-Grip Holders to allow you to switch easily between different applications. The design of the RAM Mount allows you to simply swap the tablet-sized X-Grip supplied for the larger or smaller X-Grip depending on your application. This is a great way to expand your RAM Mount’s functionality and is ideal if you want to utilise your tablet as a navigational tool using a suction cup mount.

Features of the RAM X-Grip Tablet Suction Mount

•  Spring-loaded holder expands and contracts for perfect fit of your device
•  Rubber coated tips will hold device firmly
•  Versatility of holder allows for attachment to many RAM-to-RAM 1" ball mounts
•  Single socket technology allows for multiple adjustment angles and articulation of device
•  Rustproof

Material:
Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

Holder Dimensions:

•  Minimum Width = 57.15mm
•  (Devices 57.15mm in width must be a minimum of 177.8mm in height to fit)
•  Maximum Width = 146.05mm
•  Depth = 22.22mm

Ball Size:
1" Rubber Ball "B" Size
