LRC9726 - Land Rover Series 2A & 3, 11″ REAR brake kit - all models up to 1983 - Uprated Brake System by LOF Brakes

Special Order (Dispatched between 3-5 working days)
Part Number
LRC9726
£205.00 (Exc VAT)
Increment Qty Decrement Qty
main product photo

Here at LOF we like to do everything better, and lets be honest the Series Brake drums available on the market currently are terrible, so we set out to make the best!

2 major things we corrected in our kit:

  1. The Concentricity or ‘Roundness’ of our drums, we managed to make the 11″ Series drums to a maximum tolerance of 40 microns  concentricity and 50 microns run out, this is tighter than any manufacturer of brake drums ever!

  2. The Shape and precision match of the Brake shoes to suit the drums, with a brake compound designed to avoid against squeaking and juddering! All Series owners will know what we mean! In addition, we fitted the shoes with a solid correctly shaped post rivet for spring retention, you will know cheaper brands have a straight cut rivet that tends to fall out!

For complete transparency we would like to inform you that our Series 3 Drums and shoes are made in Scandinavia, Europe, with a keen eye on quality!

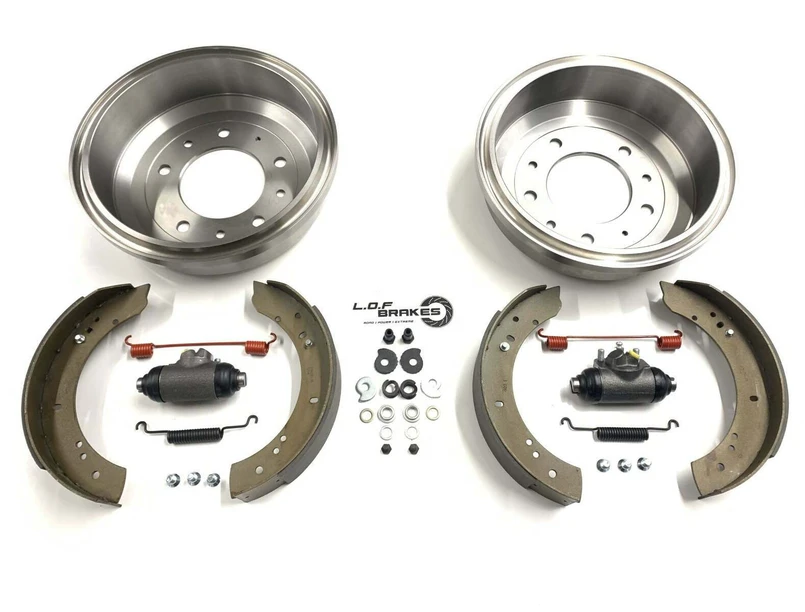

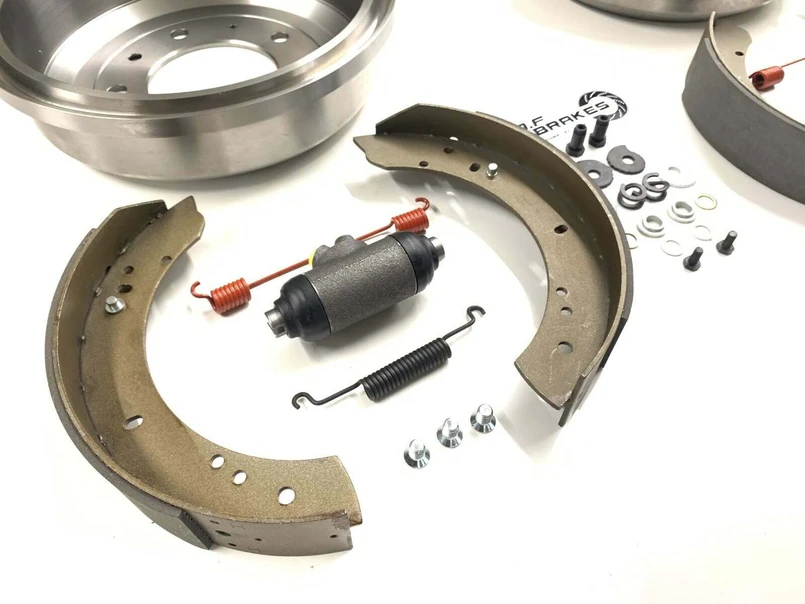

So whats included in the kit?

  • 2x LOF 11″ Drums  (Cross Ref Part Number 576973 & 516599)
  • 4x LOF 11″ Series brake shoes (Cross Ref Part Number RTC3417)
  • 1x RH Delphi brake cylinder Part 243296
  • 1x LH Delphi brake cylinder Part 243297
  • 6x Drum retaining screw Part 1510
  • 2x Top Shoe spring 548169
  • 2x Bottom Shoe spring 531893
  • 1x RTC3176 Adjuster kit

If you have any questions about this product or any of the products in our range, please contact us on sales@lrparts.net or contact our main centre on: 0151 486 0066
