LRC1440 - Defender 110 Sound Proofing - Dynamat Xtreme Vehicle Kit - For Land Rover Defender 110 TD5 Station Wagon - Fits 1998-2006

LRC1440 – Full Vehicle Dynamat Xtreme Sound Deadening Kit – Land Rover Defender 110 TD5 – 1998–2006

The LRC1440 full-vehicle Dynamat Xtreme kit has been put together by LR Parts specifically for Land Rover Defender 110 TD5 models from 1998–2006.

Rather than buying individual pre-cut Dynamat sections separately and working out which products are required, we have combined the appropriate sections into one package covering the main noise and vibration areas of the vehicle.

A heavy-duty Dynamat installation roller is also included.

Vehicle Fitment

Suitable for:

• Land Rover Defender 110 TD5

• 1998–2006

Coverage: Bonnet, front footwells, seat box and rear wheel arches

What Does Dynamat Xtreme Do?

Dynamat Xtreme is a high-performance butyl-based vibration damping material designed to control resonance in vehicle body panels.

The Defender contains large areas of relatively thin aluminium and steel bodywork which can vibrate in response to the engine, drivetrain, tyres and road surface.

Dynamat Xtreme bonds directly to these panels and helps control this movement, reducing the amount of vibration and resonance transmitted into the cabin.

Benefits can include:

• Reduced panel vibration and resonance

• Reduced road and drivetrain noise transmitted through body panels

• Fewer buzzes and rattles

• A more solid feel from the vehicle's panels

• Improved audio clarity

• Reduced vibration around speakers

Why Use Dynamat in a Defender 110 TD5?

The Defender 110 TD5 is more refined than earlier Defenders, but it still retains the same basic body construction and many large, lightly insulated panels.

Areas such as the:

• bonnet

• front footwells

• seat box

• rear wheel arches

can all contribute to the characteristic mechanical and road noise inside the vehicle.

LRC1440 combines the relevant pre-cut Dynamat sections for these areas into one convenient package.

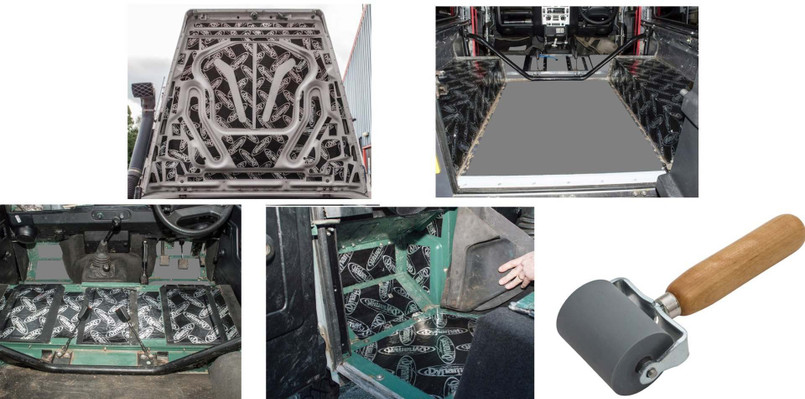

What's Included?

This LR Parts kit contains:

• DA8093 × 1 – Bonnet sound deadening

• DA8094 × 1 – Footwell sound deadening

• DA8095 × 1 – Seat-box sound deadening

• DA8087 × 1 – Rear wheel-arch sound deadening

• DA8098 × 1 – Heavy-duty Dynamat installation roller

Why Buy the Complete LR Parts Kit?

Dynamat produces individual pre-cut sound-deadening sections for different areas of the Defender.

We have combined the appropriate sections for the Defender 110 TD5 into one LR Parts kit, allowing the main areas of the vehicle to be ordered under a single part number.

This means:

• No guessing how much Dynamat is required

• No working out which individual kits need to be combined

• Pre-cut pieces designed around specific areas of the Defender

• Coverage of the main cabin and rear body noise areas

• Heavy-duty installation roller included

• One convenient package for a comprehensive sound-deadening project

Pre-Cut for Easier Installation

The individual Dynamat sections are pre-cut around the areas of the Defender they are intended to cover.

This reduces the amount of measuring and cutting required compared with treating the vehicle from bulk sheets.

Some trimming or adjustment may still be necessary because Defenders can vary and many vehicles have been modified during their lifetime.

How Does Dynamat Xtreme Work?

Dynamat Xtreme consists of a self-adhesive butyl damping layer with an aluminium constraining layer.

Once firmly bonded to a body panel, it helps reduce the panel's tendency to vibrate and resonate.

Correct adhesion is important, which is why this kit includes a heavy-duty Dynamat roller to help work the material firmly onto the bodywork.

Installation

For the best results, Dynamat should be fitted directly to a clean, dry and sound vehicle surface.

Before installation:

• Remove the relevant interior trim

• Clean the underlying panels thoroughly

• Remove loose dirt, grease and contamination

• Deal with any corrosion before covering the panel

• Keep drainage holes, wiring and service access points clear

• Use the supplied roller to ensure the Dynamat is firmly bonded to the panel

Can the Kit Be Installed in Stages?

Yes.

There is no requirement to complete the whole vehicle in one session.

The front cabin can be treated first, with the rear wheel arches completed later if required.

This also makes LRC1440 suitable for a Defender restoration, interior rebuild or rolling improvement project where different areas of the vehicle may already be stripped.

Improved Audio Performance

Reducing body-panel resonance can also improve the performance of an upgraded sound system.

By controlling unwanted vibration around speakers and larger body panels, Dynamat can help provide:

• Cleaner bass

• Reduced buzzes and rattles

• Better sound definition

• Less unwanted panel vibration at higher volume

Will Dynamat Completely Soundproof My Defender?

No.

A Defender has many sources of cabin noise including the engine, gearbox, drivetrain, tyres, wind noise, door seals and ventilation openings.

Dynamat Xtreme is primarily designed to reduce vibration and resonance through the vehicle's body panels.

Treating the major areas can make a worthwhile improvement to refinement, but it will not turn a Defender into a silent modern car.

Part Number Information

LR Parts kit: LRC1440
Vehicle: Land Rover Defender 110 TD5
Years: 1998–2006
Product: Dynamat Xtreme
Coverage: Bonnet, footwells, seat box and rear wheel arches
Kit assembled by: LR Parts
