JWP520 - Inner Winding Panel Bracket Conversion for Galvanised Front Doors - One Kit Per Door

Special Order (Dispatched between 3-5 working days)
Part Number
JWP520
£14.95 (Exc VAT)
Increment Qty Decrement Qty
main product photo
This bracket kit has been designed and made to allow you to fit the earlier 1983-2001 type inner window winding panel to 2001-2016 style doors.

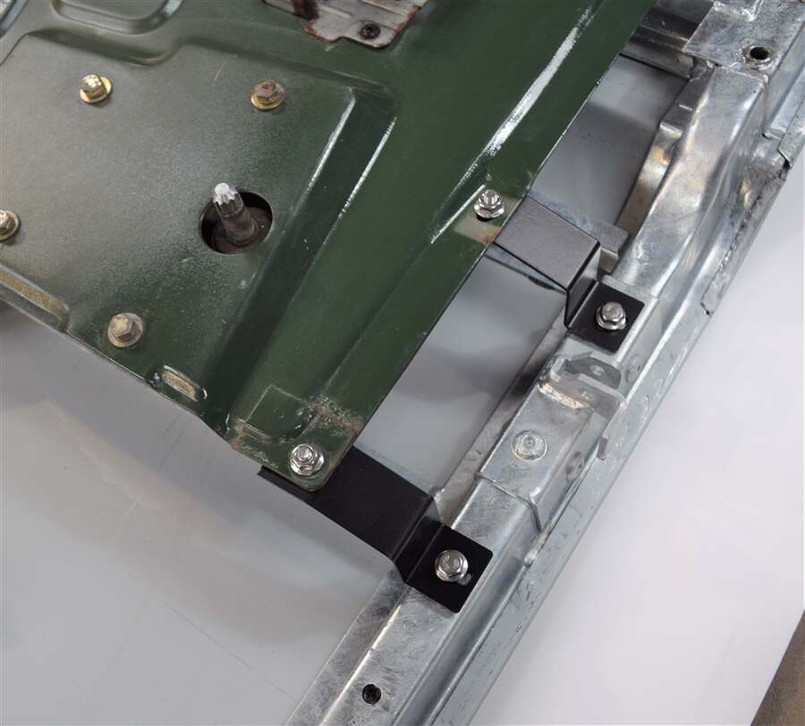

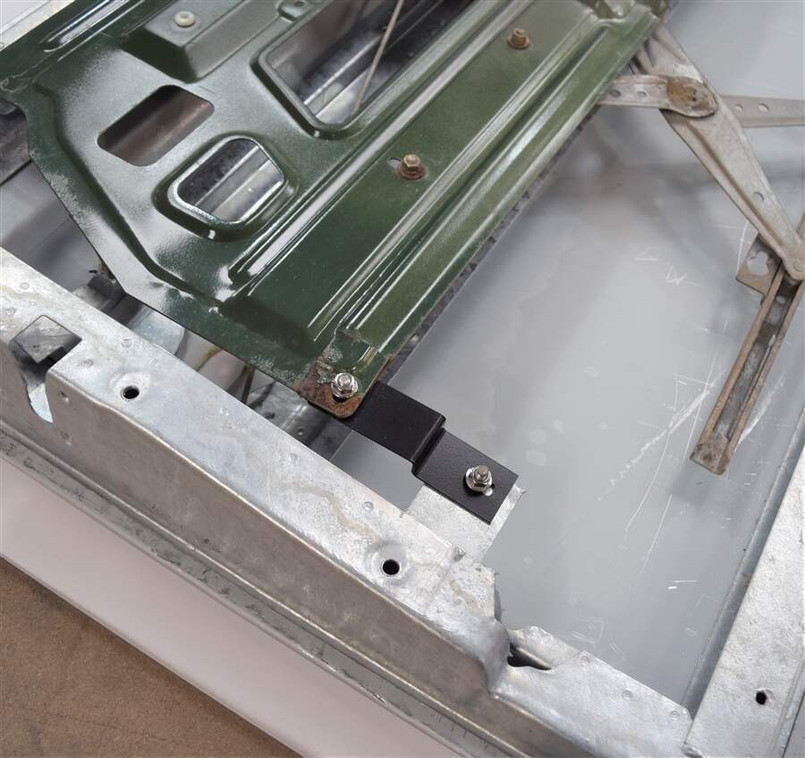

The 2 lower mounting points for the inner window winding panels on 83-01 doors are in a different position to 01-16 doors. We have added a picture to show the difference.

All of our new push button doors we sell (both standard and galvanised) are of the later 2001 onwards specification.
So this bracket kit is required to allow you to fit your earlier type inner panel to the later specification door. The rest of the door are exactly the same so all of your older door parts swap over no problem.

Rather than having to buy the later inner winding panels (BDV710090 and BDV710080) ,this kit allows you to fit the earlier winding panel to the later Tdci doors too.

You get in this kit 3 brackets made from 1.5mm steel, laser cut and CNC folded for accuracy.
You also get all the nuts and bolts need to attach the inner panel to your door.

This kit is to do one door, so if you need to do both your front doors you wil need 2 of these.

The best thing about this kit is that it utilises existing threaded holes in the door and the holes on the inner winding panel so you dont have to drill anthing. This is just a simple bolt on job.
