- GL1171 - Gwyn Lewis Rear Adventurer Rear Shock Mounts - Comes as a Pair for Pin to Pin Mounting - For Defender, Discovery 1 and Range Rover Classic
GL1171 - Gwyn Lewis Rear Adventurer Rear Shock Mounts - Comes as a Pair for Pin to Pin Mounting - For Defender, Discovery 1 and Range Rover Classic
Special Order (Typically Dispatched Within 5-7 Business Days)
Part Number: GL1171
£70.37(Exc VAT)
£84.44(Inc VAT)
Product Information

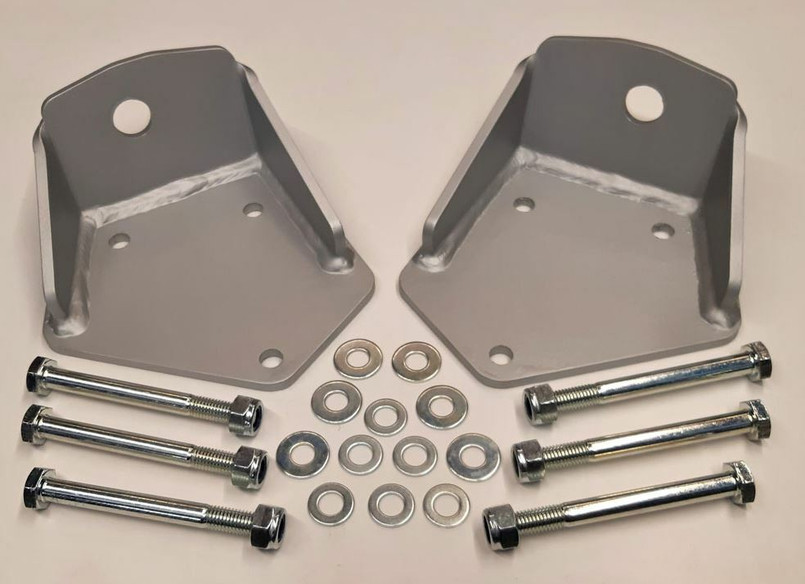

These NEW Pin/Pin Rear Shock Mounts have been designed to use a Pin/Pin fitting Shock on the rear of a Defender.
It is a known problem for the upper Eye fitting on standard fitment rear shocks to brake off due to lack of sideways movement.
A Pin fixing allows more movement in all directions without braking off as has been well proven over the years by my +5inch Challenge Pin/Pin Rear Shock mount.
This Pin/Pin Rear Shock Mounting is for use by those who want the much improved reliability of a Pin/Pin fitting shock over the Standard Eye/Pin fitting and that do not need the maximum amount of Axle Articulation available from my +5inch Pin/Pin fitting Challenge mounting.
These mounts bolt on directly in place of the original Land Rover Shock mounts, you won’t need to move the Fuel Filter mounting on TD5 and Pumas which you need to do with my Challenge Pin/Pin Rear Shock mounts. These mounts are GALVANISED and come with the fixing bolts to fit them.
If used with standard length Pin/Pin shocks then you can keep your anti roll bars and your springs will not dislocate, this is good for road bias cars and those with lowering springs, you won’t need extended brake hoses either.
If used with +3″ Pin/Pin Shocks you will need to remove anti roll bars, fit springs retainers and re-locators and extended brake hoses.
These mounts will work with lowered springs up to 3″ lift springs when used with the correct shocks, all of which we can supply.
Fitting configurations
Standard Length Shocks
- These can be fitted with or without Anti Roll Bars.
- 1” Lowered Ride Height
- Standard Ride Height up to 2” Lift
You will not need extended Brake Hoses or Spring Re-Locators.
Extended Bump Stops will be needed if using a lift spring.
+3” Shocks
- Can only be used without Anti Roll Bars fitted.
- Standard Ride Height up to 3” Lift
You will need extended Brake Hoses, Spring Retainers, Spring Re-locators and Extended Bump Stops.
