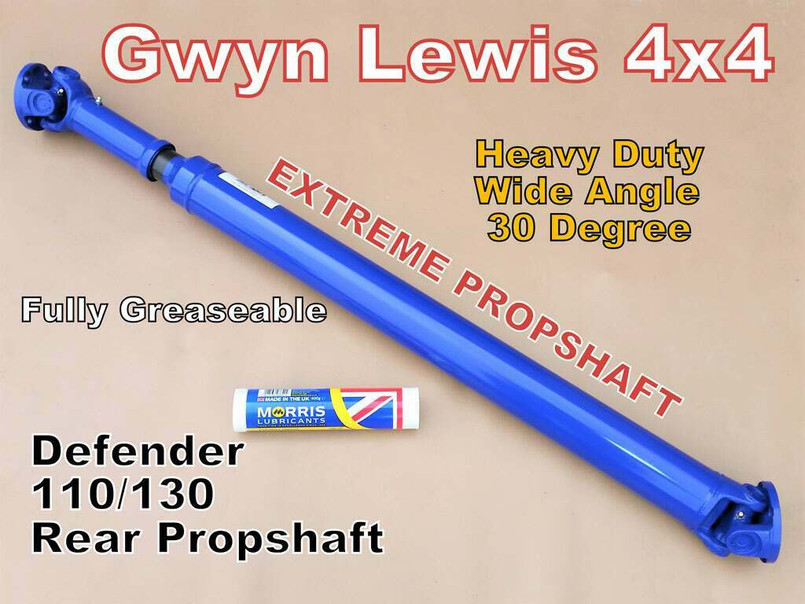

GL-EXT-1060-BLUE - Land Rover Defender 300tdi / TD5 110 Rear Salisbury Wide Angle HD 1310 Prop Shaft in Blue by Gwyn Lewis

Custom built Exclusively for Gwyn Lewis 4×4 to our own very specific specifications. Not to be confused with other similar looking propshafts available elsewhere.

Working length :- 1094mm + – 8mm

Fits:- Defender 110 Rear 300Tdi/Td5 With Salisbury Rear Axle & Disc Brakes.

Weight :- 13KG

These HEAVY DUTY 1310 wide angle prop shafts are custom made for us to our own specification, they are a very well made prop shaft using the very best of components we can source, they are fully greaseable including the slider, they are balanced to a very high standard and have proved to reduce vibrations on many Land Rovers.

These propshafts are made to a very high standard, please do not compare these to cheap import ones.

Fitting advice:-
Please note these propshafts have heavy-duty round flanges, when fitting make sure you clean up all flange faces as they should not sit on top of dirt or rust.
Brush grease onto flange faces this will help prevent rust.
The Slider goes to your transfer box flange, for a Double Cardan propshaft the DC end goes to the front transfer box flange.
You must ensure all UJs and the slider are fully greased on fitment and are regularly greased during use.
Always make sure your propshaft can still turn with your axle at full suspension drop out, long-travel suspension can allow the axle to drop down too far causing the joints to bind and break.

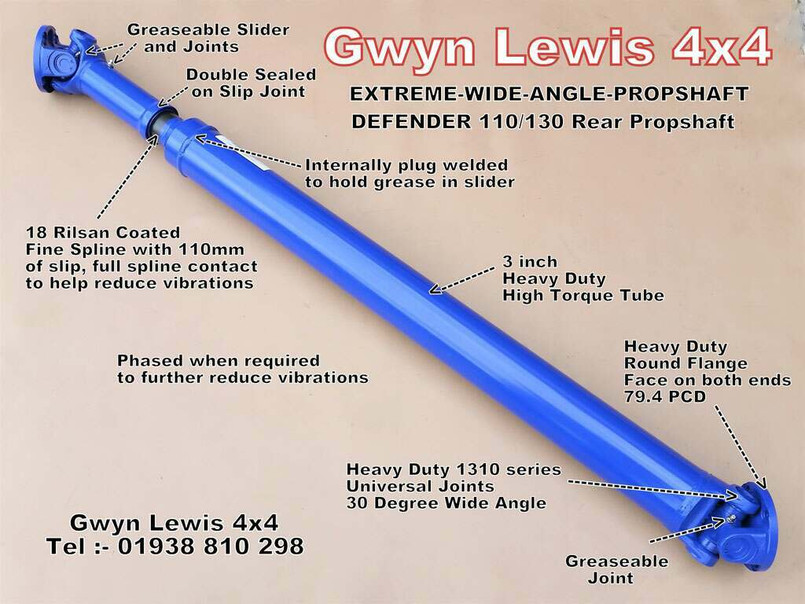

They feature

• 30 degree wide angle (1310 series) to prevent the propshaft binding up on long-travel suspension.
• Large 3 inch heavy duty 3mm wall tube.
• Higher torque capacity than a standard Land Rover propshaft.

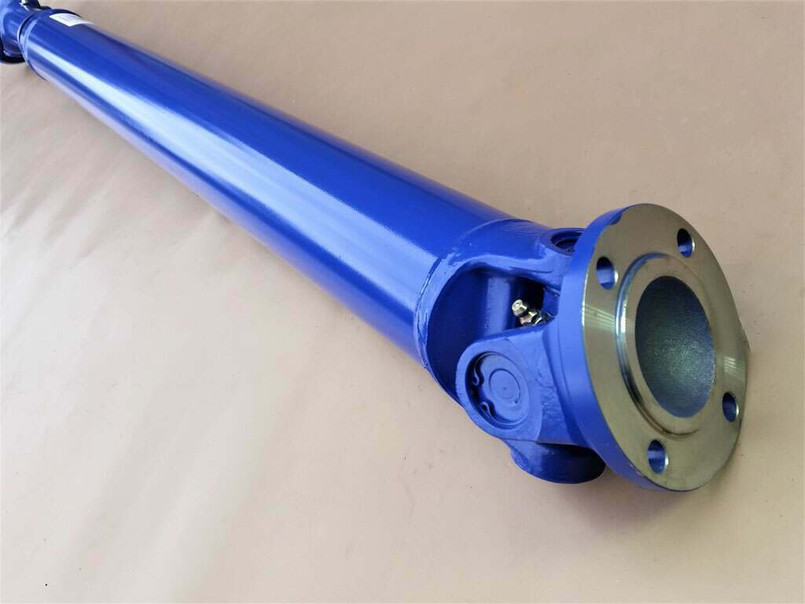

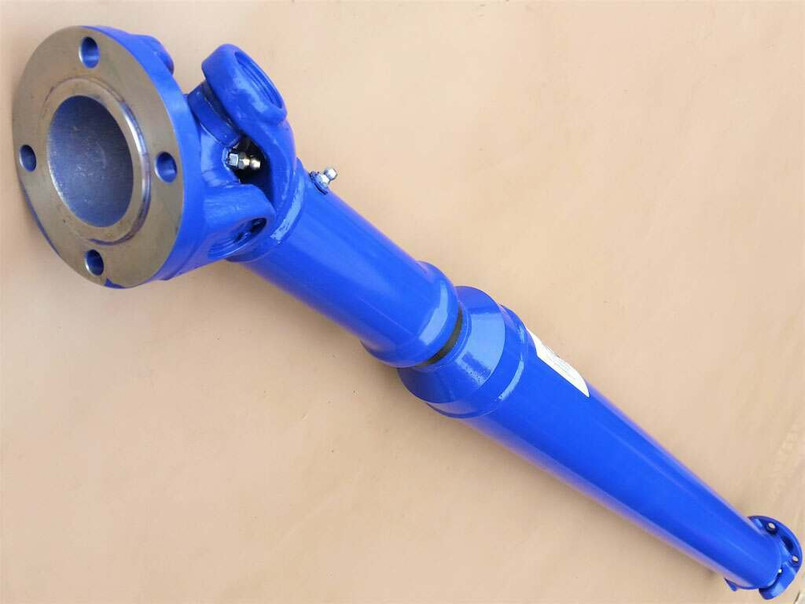

• Heavy duty round flange face (not the old square type),  that bolts onto the diff and gearbox 79.4mm PCD.

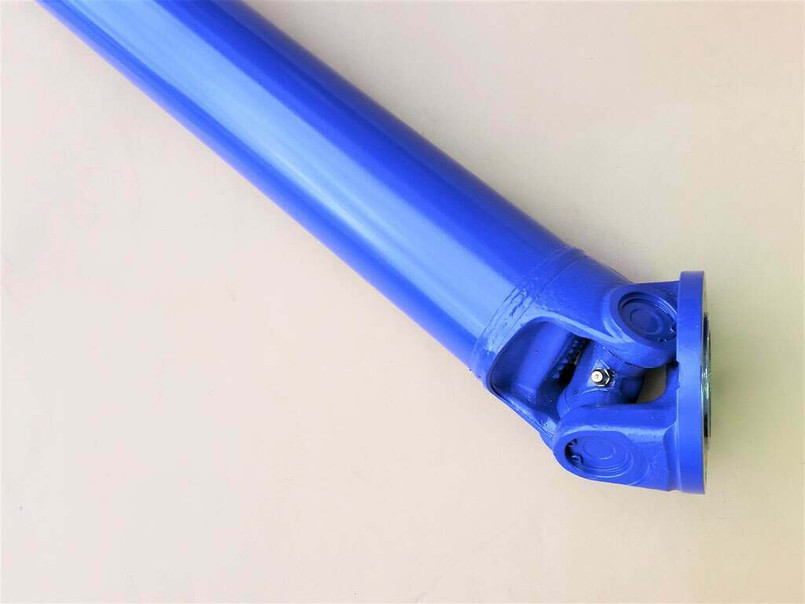

• Heavy duty 1310 series Universal Joints (81.8mm x 27mm) with nylon thrust washers and nylon/rubber seals, the nylon thrust washers also have 5 slots in them to allow grease to get to each cup when greasing (see picture of the joint, you can see the 5 slots in the thrust washer).
• Rilsan coated spline for smoother operation and helps eliminate vibrations.

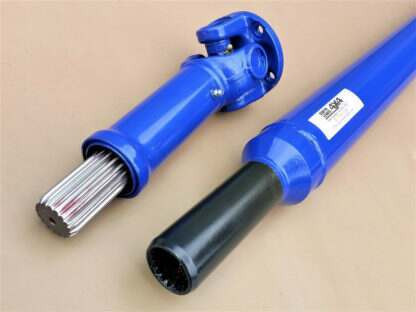

• Upgraded involute spline configuration with 18 splines that is GREASABLE which is a feature only found on our propshafts.

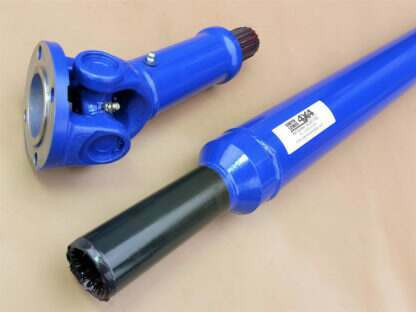

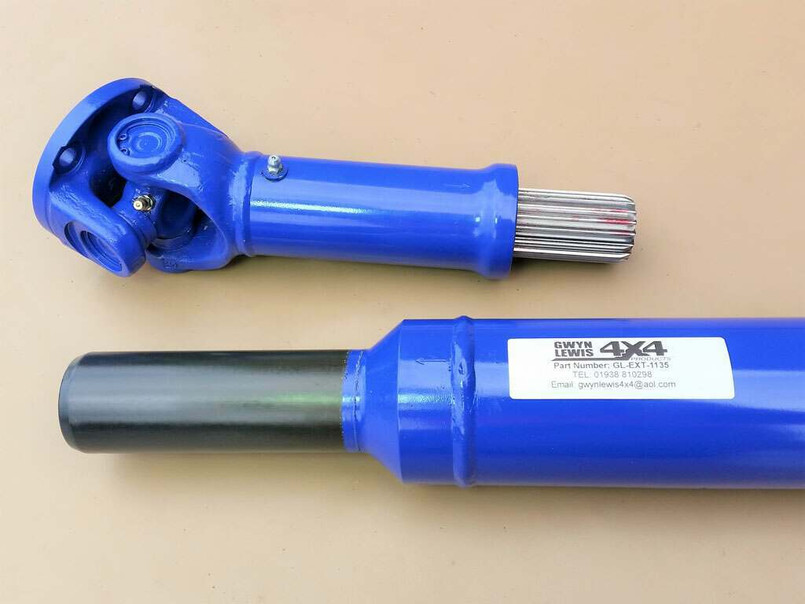

• Double seal arrangement on the slip assembly, with 110mm of movement and full spline contact on the male and female slider to help with long-travel suspension.
• Internally plug welded to hold the grease in the slider.
• Phased when required, to reduce vibrations.
• All prop shafts come with a tube of K48 grease.

Propshaft Wear:-
Propshaft universal joint wear and vibration is a problem on Land Rover vehicles, on lifted vehicles, this can be more of a problem as it steepens propshaft Universal Joint working angles to the point where they overheat and vibration problems can become an issue. Caster Correction also steepens UJ working angles so can cause more vibration and overheating problems, even lowered Defenders can suffer from vibration issues. No prop shaft should be run for long periods with a steeper running angle of more than 5 degrees, anything above this angle used for long journeys will cause the UJs to overheat, the grease will dry up and cause premature wear. This is always a problem with Land Rovers. For example, if you are driving at 50mph at 2000RPM the propshaft is revolving 2000 times every 1 minute, the steeper the angle the faster the needles are revolving in the caps, this is why they overheat, on a Double Cardan at these speeds the ball in-between the 2 joints is also working hard and getting hot, eventually, it will cause the rubber boot over the ball to fail.

Vibration:-
Vibrations are normally felt on overrun, around 50mph where you are not accelerating or engine braking, the whole transmission is “slack” on overrun.
The centre diff inside the transfer box can “rattle” around at this point, both output drive flanges are only supported by outer bearings and the inner shafts just slide into the centre differential. There is always some play in the shafts and gears you then feel some play (Up Lift) in the outer drive flanges as the shaft pivots on the bearing, this then causes the flanges to rotate out of shape. These are all unbalanced parts and can themselves be the cause of transmission vibrations, sometimes I have seen fitting an imbalanced propshaft can cure vibrations as it balances out the transfer box imbalance.

Double Cardan:-
A Double Cardan propshaft is often successful in helping to solve these vibration problems but it is not a true cure, it can hide the problem to the point where it is not noticed or becomes bearable.
A Double Cardan propshaft has two UJs at the Double Cardan end, between the two joints there is a ball and cup that holds the two joints together, this is positioned at the front transfer box flange (where the steepest working angle is on all Land Rovers). These two UJs together halve the angle at the transfer box, halving that angle helps to reduce wear and vibration problems caused by steep running angles, however, the ball in-between the two joints may also wear out as it is under more strain.

Wide Angle:-
A Wide Angle propshaft alone is not always enough to help with vibration problems. A good quality Wide Angle propshaft can be enough to solve some vibration problems however the UJ’s are still working at the same angle as a standard propshaft.
A Wide Angle propshaft can turn through a wider angle before yokes bind, this is to accommodate long-travel suspension movements (axle drop out) off-road, it does not mean that the propshaft can be run at steep angles on road. UJ’s will wear quicker when run at steep angles. Ideally for road work UJ’s should be running between 2 to 5 degrees, beyond 5 degrees UJs will overheat causing quicker wear and vibrations can become an issue.

Our propshafts, Wide Angle and Double Cardan, are made with long slip sliders to accommodate long-travel suspension. A propshaft spacer should NEVER be used for any reason. By adding a spacer you will cause damage to your driveline if your propshaft can not close up enough.

Please note that propshaft UJ`s on lifted vehicles are under more strain and require REGULAR GREASING to help prolong their life.
