EXT00663 - OZZ SQR 9" Light - 12,000 Lumens - Available in Black or Arctic White

A New Shape in Lighting,Boost mode, Dynamic Dual Position Light, E-approved, Integrated Warning Light. Available in Black or Artic White 9" Versions.

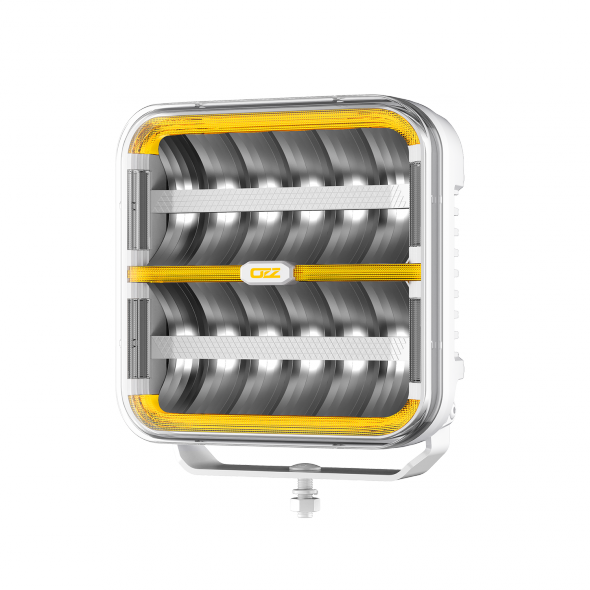

OZZ SQR 9” is a new-generation square driving light that breaks away from traditional round formats. With a bold square design, fully colormatched components and a curved lens for a refined finish, the SQR series combines striking aesthetics with high performance. In boost mode, the OZZ SQR 9” delivers up to 12,000 lumens and 1 lux at 950 meters, while the balanced driving beam ensures both long-range throw and wide peripheral coverage.

The SQR series is engineered around a square body — a format that mounts tighter, beams further, and looks sharper than anything before it. Behind the clean geometry lies an uncompromising build, packed with performance and a balanced driving beam that delivers both throw and spread in perfect harmony.

Every detail is intentional. From the curved lens that elevates the fi nish, to the dynamic position light with a unique depth effect, to the integrated strobe mode for signaling, safety, or pure presence. The SQR doesn’t just check boxes — it changes the game.

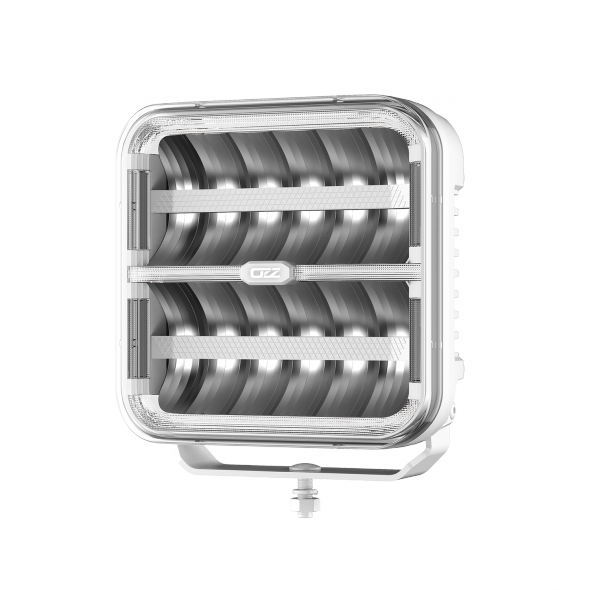

The SQR is built to blend into the most demanding builds while standing out in all the right ways. Each variant features fully color-matched components, including lens, bezel, housing and lens cover. It’s E-approved and road-legal across Europe, but with the boost mode engaged, it unleashes its full off-road potential.

• Universal Fitment (From Defender to Discovery, Skoda Yeti to Ford Ranger)

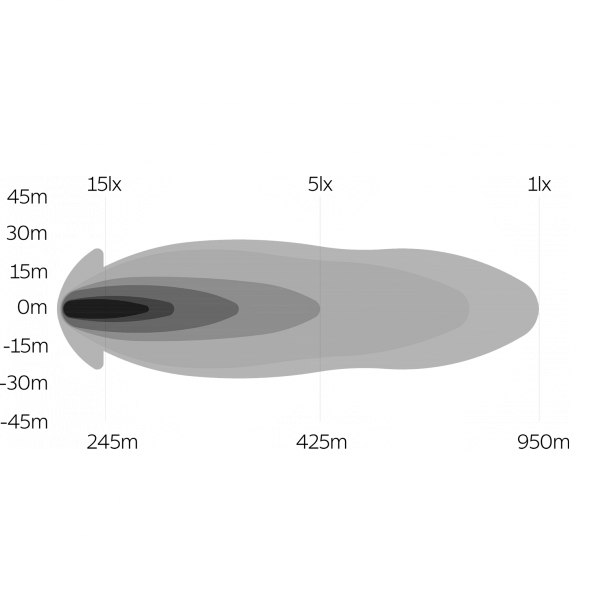

• Beam pattern: Driving
• Actual lumen: E-approved: 5000, Boost: 12000
• 1 lux @ E-approved: 480 m, Boost: 950 m

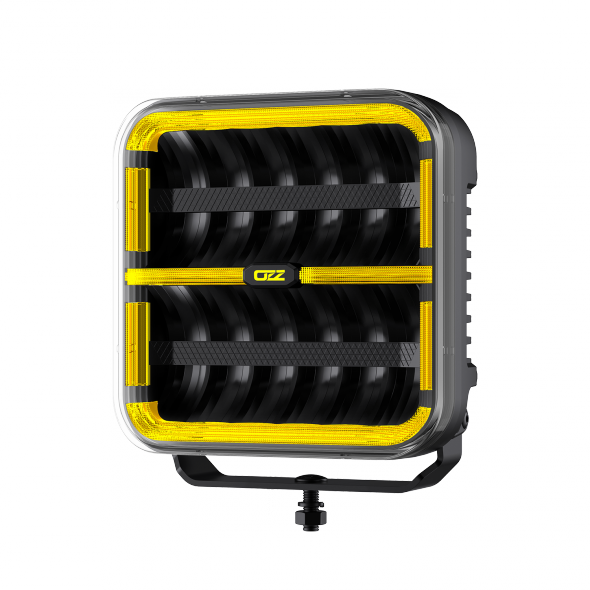

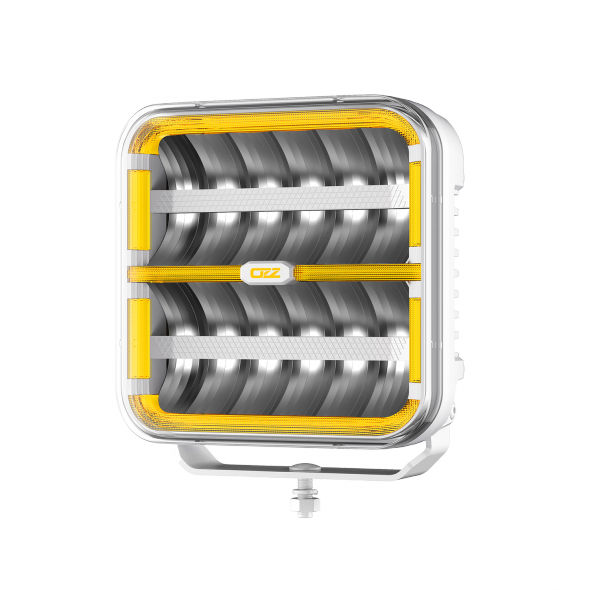

• Dynamic Dual (White and Amber) Position Light
• E-approved
• Integrated Warning Light (Double Flash Light Patterns)
• 5000K
• Connection: 2-pin DTP male + female + 5 cables 9-32V DC
• 24 CREE LEDs
• Actual effect 12V : E-approved: 60W, Boost: 160W
• Nominal current 12 V :E-approved: 5A, Boost: 13,5A
• IP-class: IP68 IP69K
• Cable length (mm): 1000 (800+200)
• Operating temperature: -40C - +60C
• E-approved according to regulation: ECE R149,ECE R65,ECE R148
• EMC: ECE R10
• Length (mm): 210
• Depth (mm): 95
• Height (mm): 210
• Height including bracket (mm): 231
• Colour lens: Clear
• Material lens: Polycarbonate

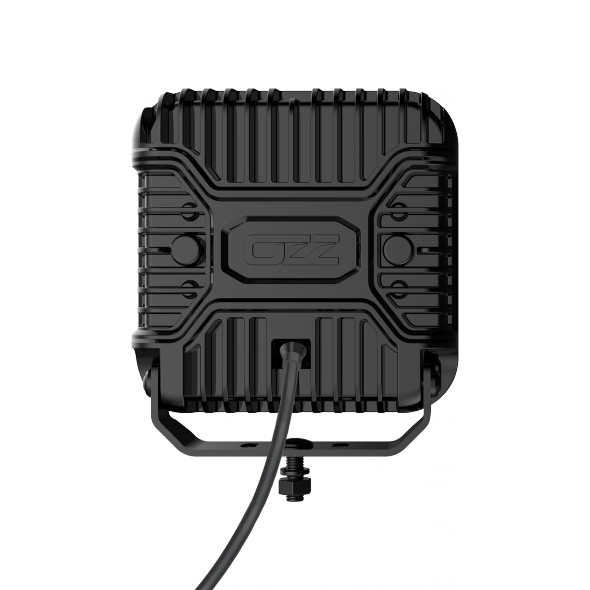

• Material housing/chassis: Aluminium
• Material bracket: Stainless steel
