DA4996 - Stinger 2 DIN Head Unit - IE268 6.8" Touchscreen Infotainment System

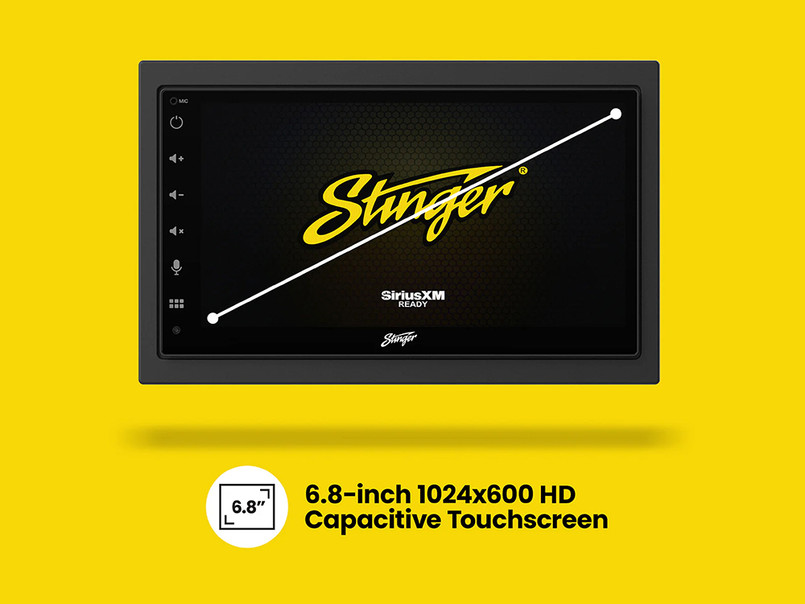

Vibrant 6.8” HD Touchscreen: Enjoy stunning visuals with a 1024x600 capacitive display.

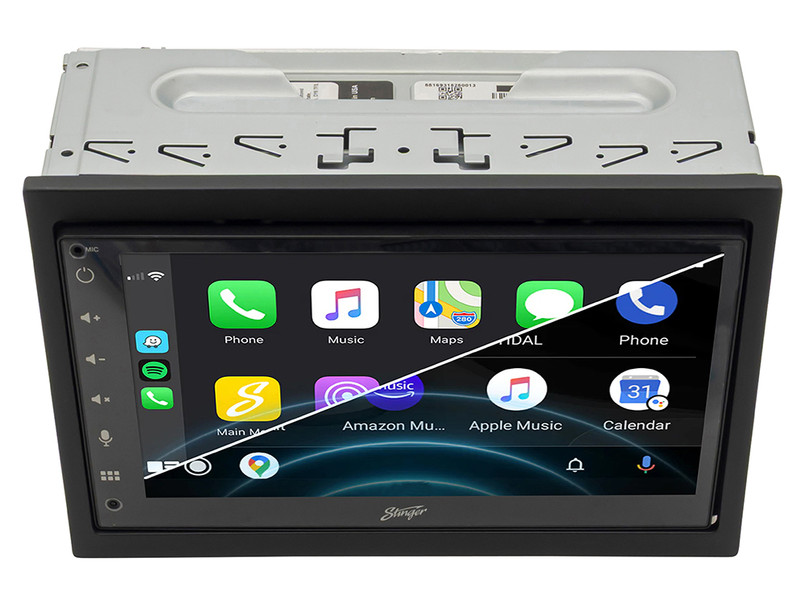

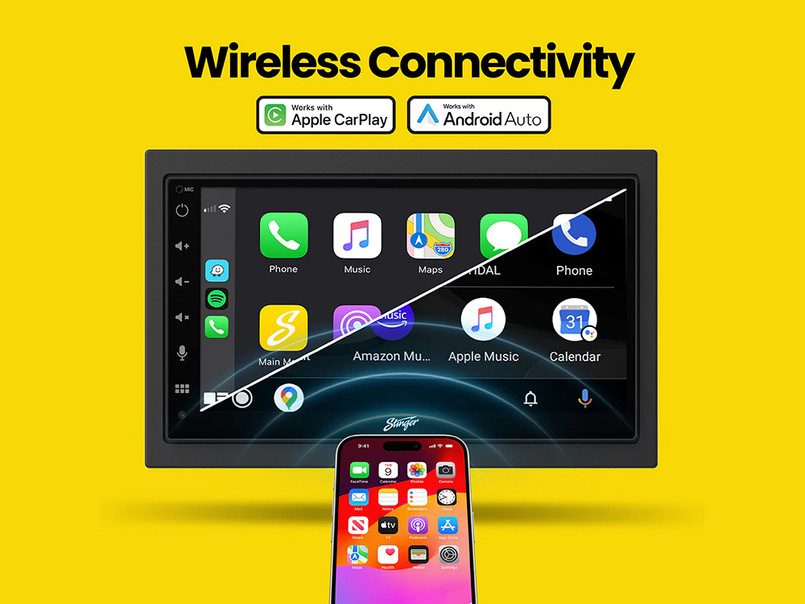

Wireless Smartphone Connectivity: Compatible with Apple CarPlay and Android Auto, and phone mirroring (wireless or wired connection) to make it possible to access map navigation, phone contacts, notifications, music, and much more.

Bluetooth Connectivity: Hands-free calling and music streaming with Bluetooth V4.2 A2DP AVRCP.

Steering Wheel Control Ready: Effortless control with SWI-RC compatibility.

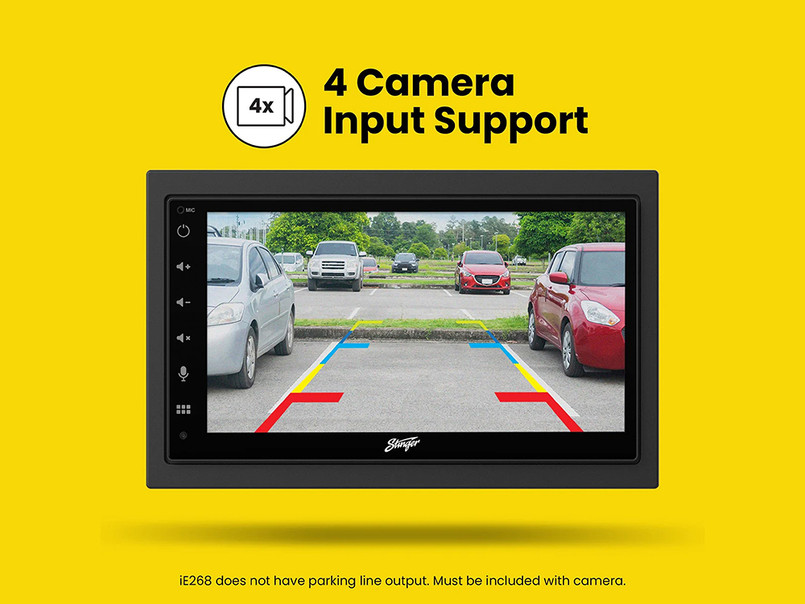

Camera Inputs: Supports up to 4 camera inputs with adjustable parking guidelines for effortless manoeuvring.

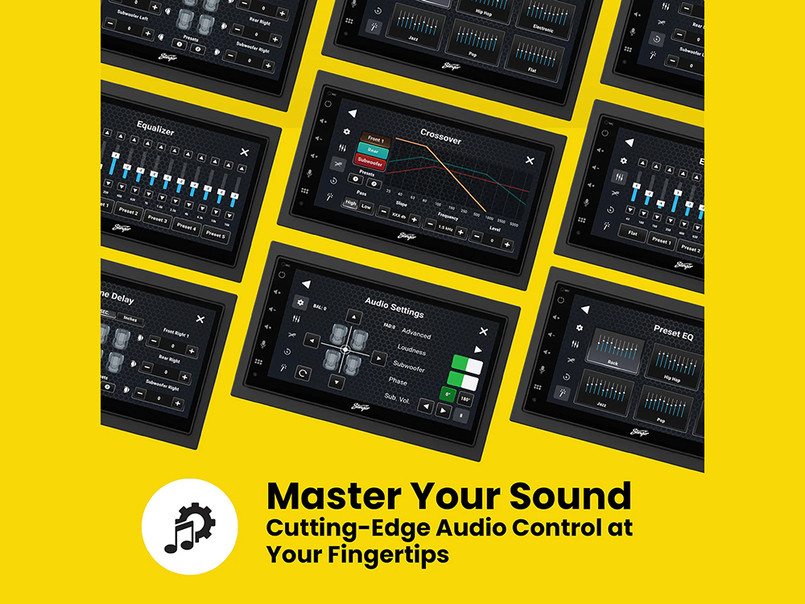

Superior Audio Performance: Enjoy powerful sound with a 4 x 26W (45 x 4max) amplifier, expandable with external amplifiers. Experience advanced audio processing with a 24-bit DSP, 13-band EQ, time correction, independent subwoofer control and selectable crossovers

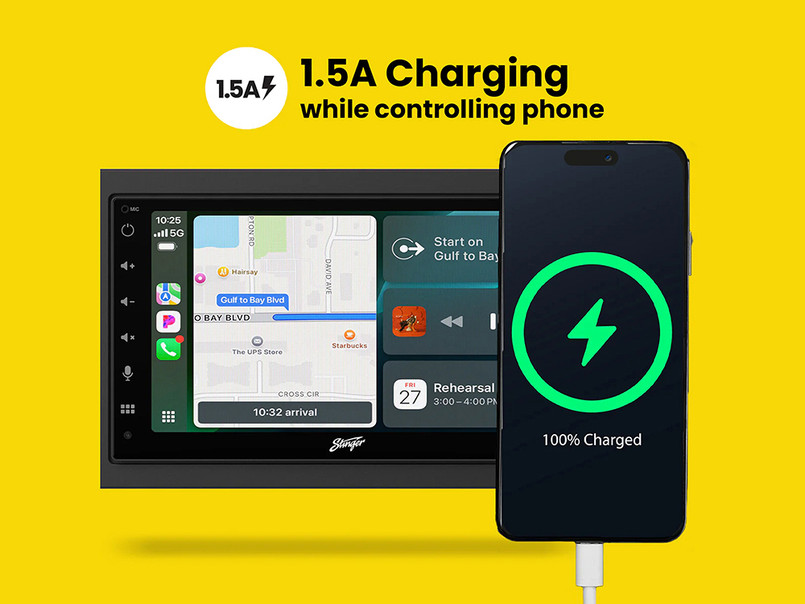

Extra Enhancements: Charge and control your phone with a high-power 1.5A USB input, and personalise your screen with custom backgrounds.

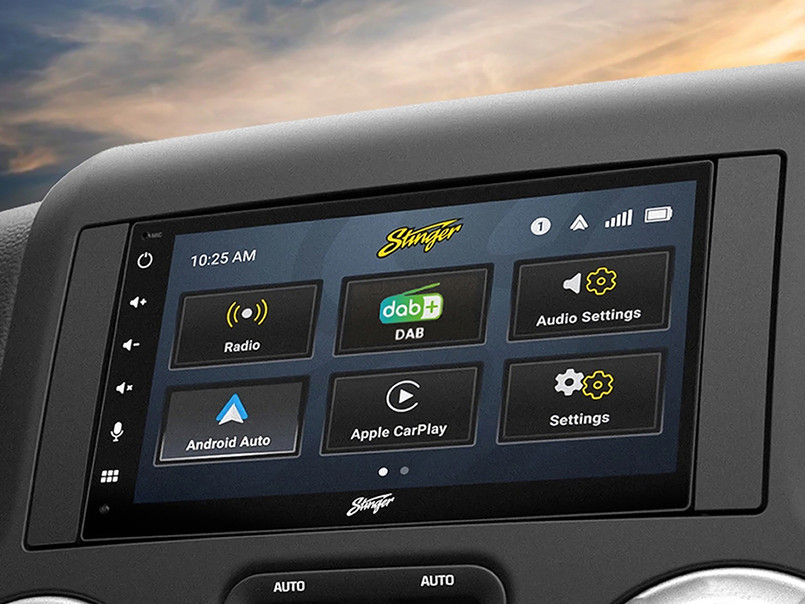

DAB Digital Radio: Stream the latest digital radio



Features & Specification
> Operating Voltage: 10.5VDC to 16VDC
> Grounding system: Negative Ground
> Max current consumption: 15A fused
> Radio Module: 178 mm x 87.8 mm x 100 mm (W
x H x D)
> Display: 160.7 mm x 90.8 mm (W x H) 6.8-inch
Diagonal 16:9 aspect ratio 1024 x 600
> Pixels: 1,024,000
> Active Area: 151.76 (W) x 79.8 (H) mm
> Operating Temperature (C): -20° to 70°
> USB 2.0ax current supply 1.5A
> Max storage size: 128GB
> USB Class: A
> Supports: Video/Audio/Image Media Playback,
Charging, and Firmware Update
> USB 3.0 (one) Max current supply 3A
> Max storage size: 128GB
> USB Class: C MSC (Mass Storage Class), MTP
(Media Transfer Protocol)
> File system: FAT32, NTFS
> Supports: Apple CarPlay, Android Auto, Video/
Audio/Image Media Playback, Charging, and
Firmware Update
> Bluetooth
> V5.1 dual
> 4dBm Class2
> 2.4GHz to 2.48GHz
