DA3729 - Sentinel 9" Standard LED Lamp - Slim Mount - by Lazer

With Position Light & Slim Mount

Single Light

Lazer Part Number - 0S9-PL-SM

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamp name.

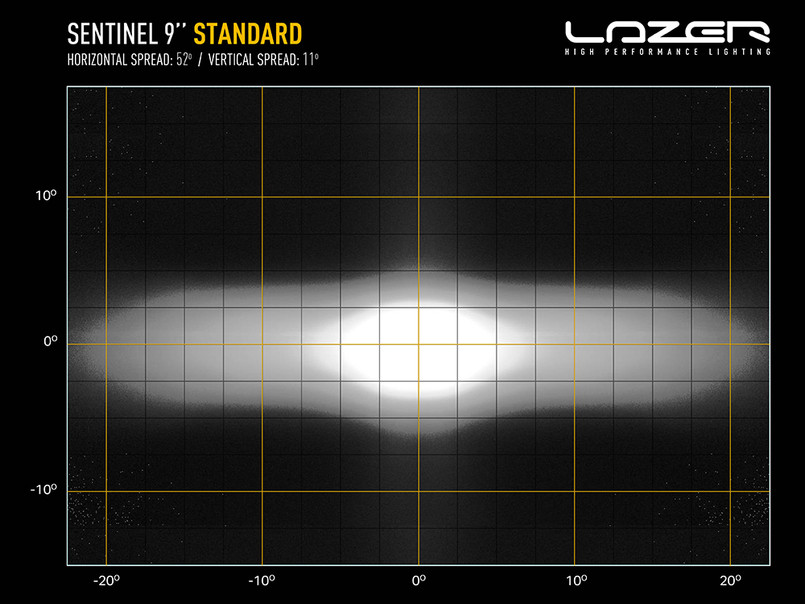

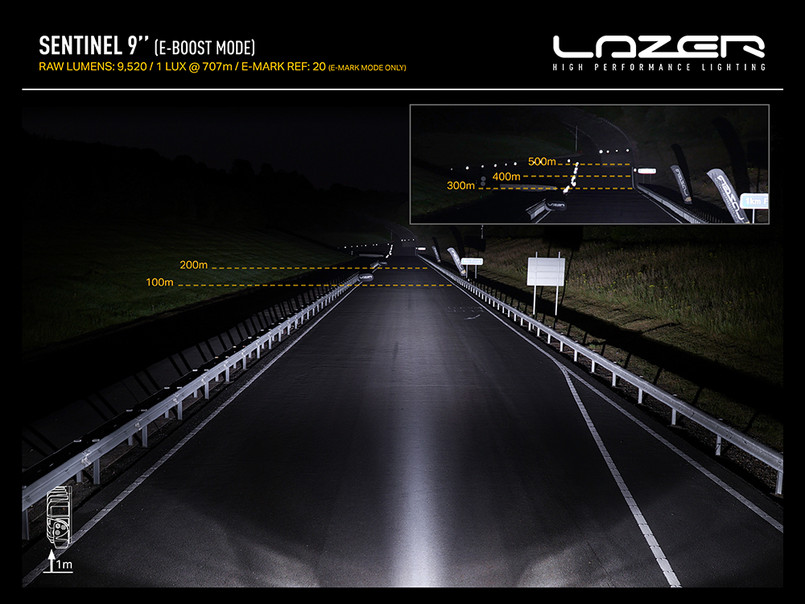

Emitting 9,529 raw lumens, the lamps deliver 1 lux reaching to over 700m; impressive in itself, but considering the 52 degrees horizontal beam angle, this is a product that has been designed to deliver maximum visibility for all manner of on-road and off-road use. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.

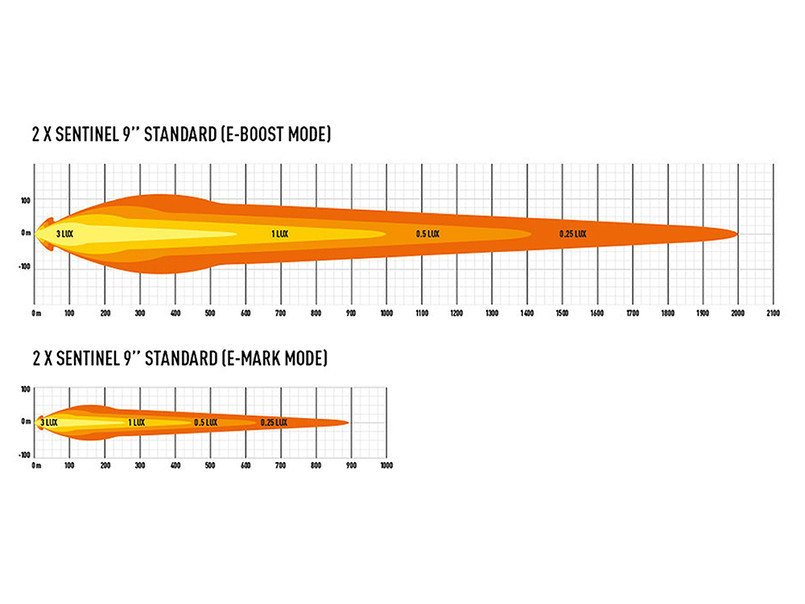

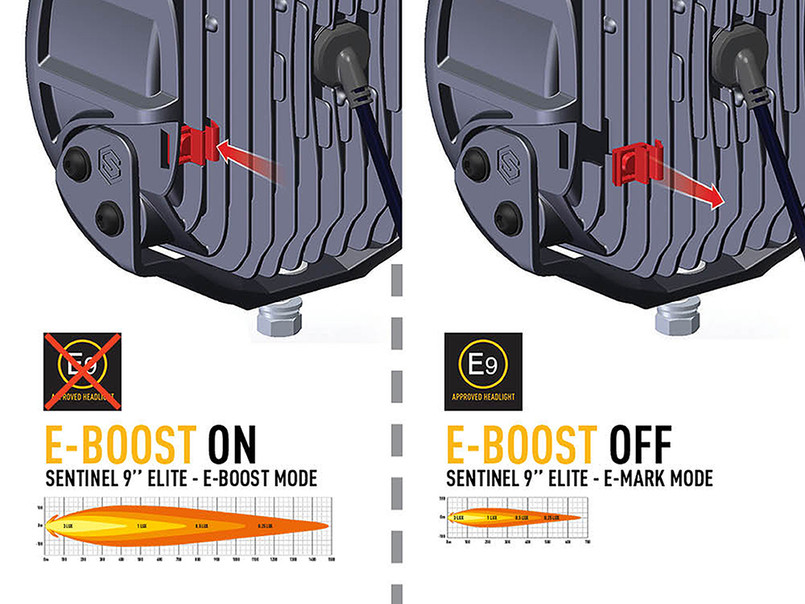

The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.

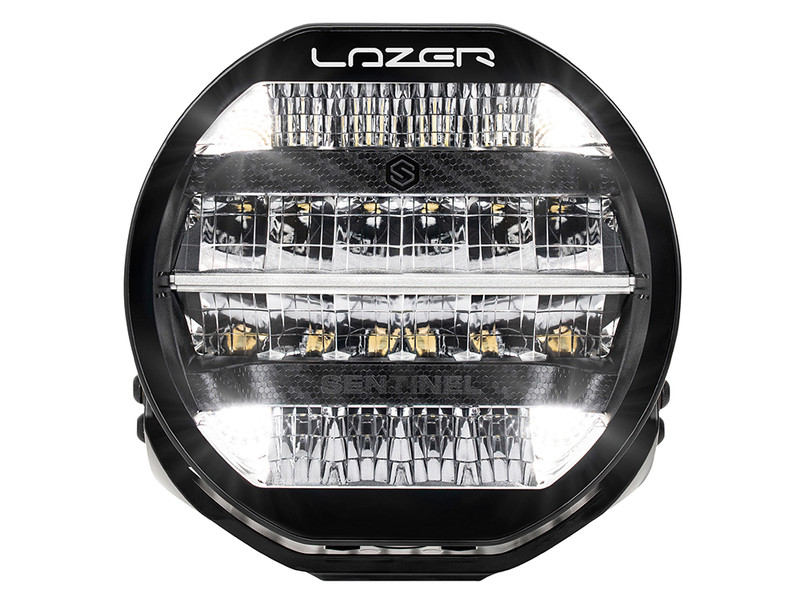

The stealth design of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. There is an option to connect white or amber position/side light function, for an even more distinct look.

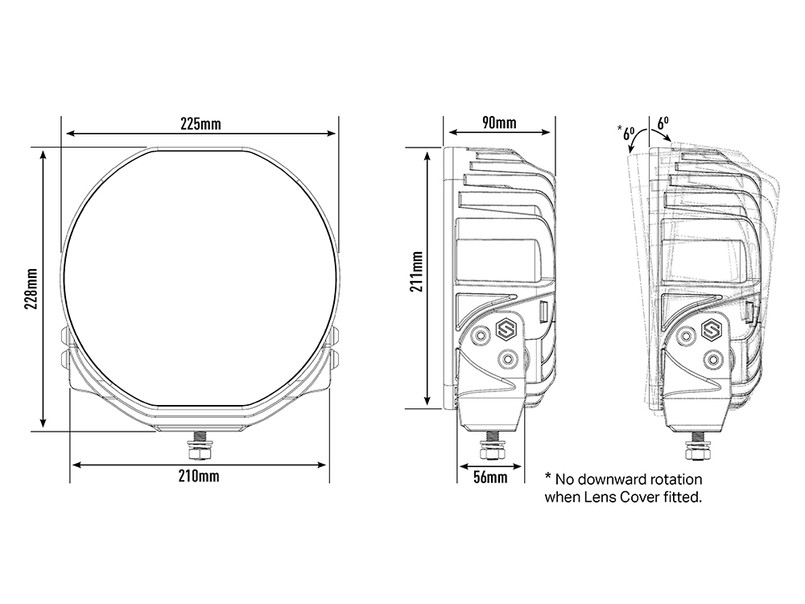

The lamps are supplied with a ‘slim’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion.

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that environmental stewardship and an ambitious carbon-reduction program features heavily in the Sentinel products design and build.

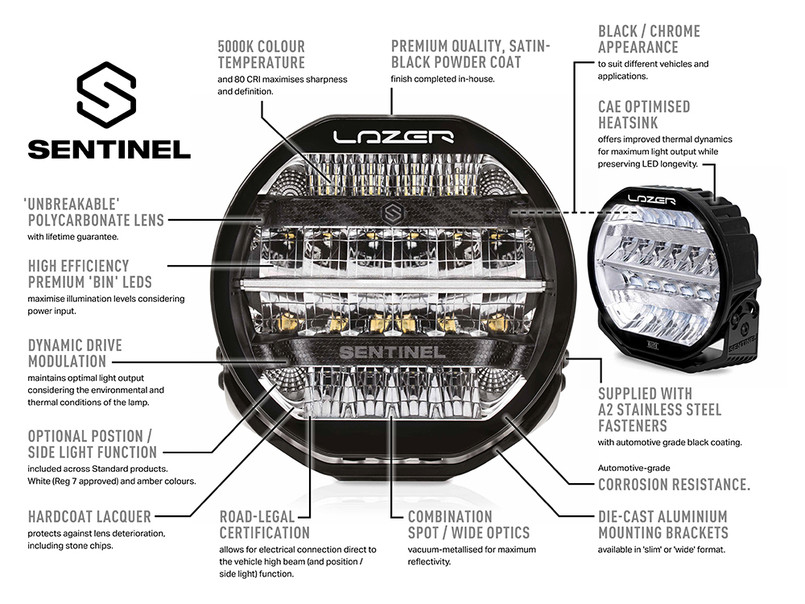

Key Features

> Combination of 20 premium ‘bin’ LEDs
> Black internal appearance available
> 5000K LED colour temperature and 80CRI maximises sharpness and definition
> Integrated white and amber position light function
> Ultra-reflective vacuum-metallised spot and wide optics
> UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)
> Contemporary light design
> Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
> Electronic thermal management system optimises light output to preserve longevity of the LEDs
> Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

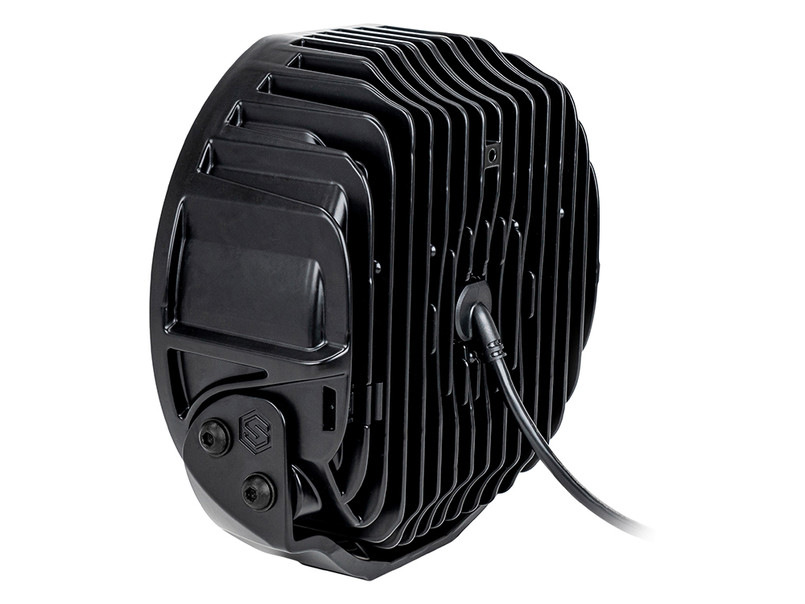

> CAE optimised heatsink offers improved thermal dynamics
> Over voltage protected
> Reverse polarity protected
> ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
> A2 stainless steel fasteners with automotive grade black coating
> UNECE approved Reg 10
> IP68 watertight – 1.5m submersion (30mins)
> 5-year warranty
> Supplied with pre-wired male/female 3-pin Superseal connectors
> Designed & manufactured in UK
